FINS: Fast Image-to-Neural Surface

Wei-Teng Chu¹ · Tianyi Zhang² · Matthew Johnson-Roberson^3,4 · Weiming Zhi^3,4,5

¹ Stanford University · ² Aurora · ³ Carnegie Mellon University · ⁴ Vanderbilt University · ⁵ The University of Sydney

FINS reconstructs high-fidelity surfaces and signed distance fields from a single RGB image in seconds, enabling real-time robotic surface interaction.

Abstract

We present Fast Image-to-Neural Surface (FINS), a lightweight framework for reconstructing high-fidelity implicit surfaces and signed distance fields (SDFs) from a single image or sparse image set. Unlike prior neural implicit methods that require dense multi-view supervision and long optimization times, FINS converges within seconds by combining multi-resolution hash grid encoding, lightweight geometry and color heads, and approximate second-order optimization. By leveraging pre-trained 3D foundation models to lift 2D observations into 3D point clouds, FINS enables accurate and efficient SDF supervision from minimal visual input. We demonstrate superior convergence speed and reconstruction accuracy compared to state-of-the-art baselines, and validate its applicability in robotic surface following and motion planning tasks.

Motivation

Signed Distance Fields (SDFs) are widely used in robotics for collision avoidance, motion planning, and continuous surface interaction. However, existing neural implicit surface reconstruction methods typically:

Require dense multi-view images
Take minutes to hours to converge
Are unsuitable for real-time robotic deployment

FINS addresses these limitations by enabling real-time, single-image SDF reconstruction.

Method Overview

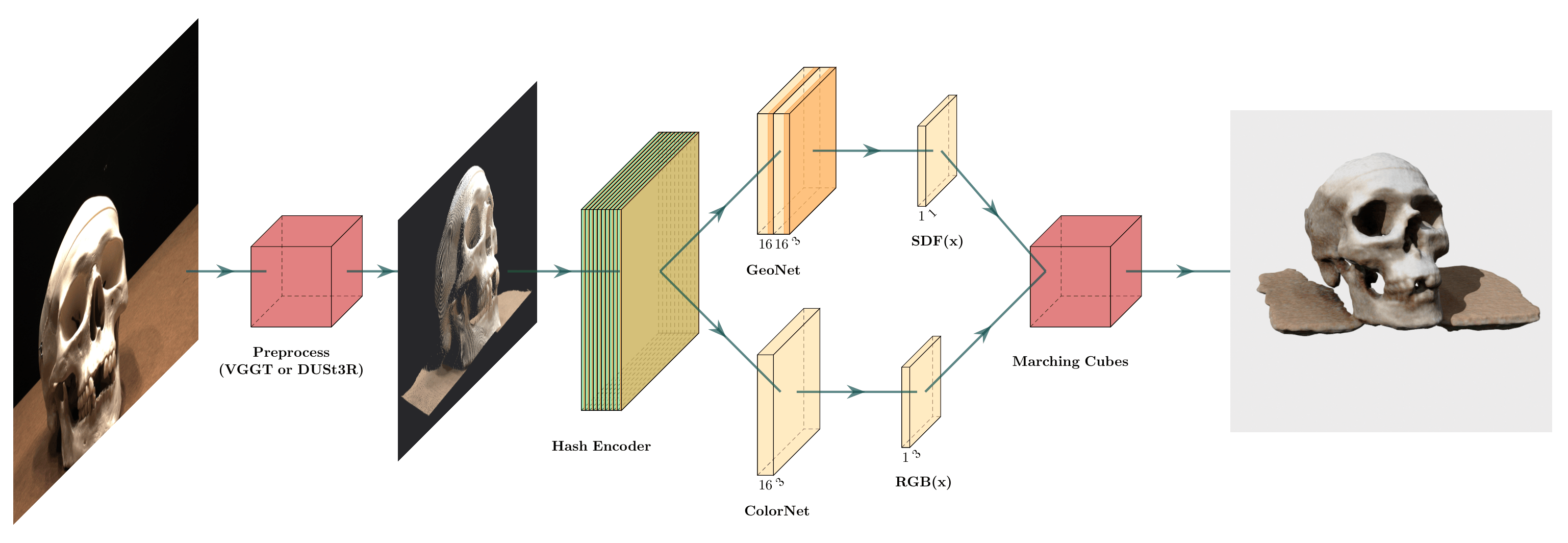

FINS pipeline: single image → 3D foundation model → point cloud supervision → hash grid encoded implicit SDF.

Key Components

3D Foundation Model Initialization: Uses DUSt3R or VGGT to generate dense point clouds from single-view input.
Multi-Resolution Hash Grid Encoding: Efficiently encodes spatial coordinates with constant memory complexity.
Lightweight Geometry & Color Heads: Compact MLPs for rapid SDF and appearance regression.
Approximate Second-Order Optimization (K-FAC): Accelerates convergence and stabilizes implicit field training.

Results

Reconstruction quality comparison. FINS achieves faster convergence and higher fidelity under identical sparse-view conditions.

FINS converges within ~10 seconds on consumer-grade GPUs and outperforms multi-view baselines in both surface accuracy and SDF quality.

Robotics Applications

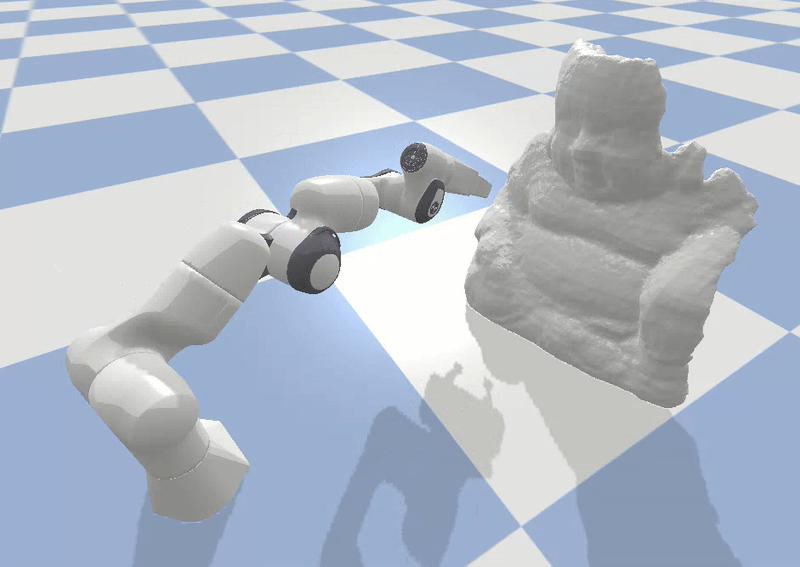

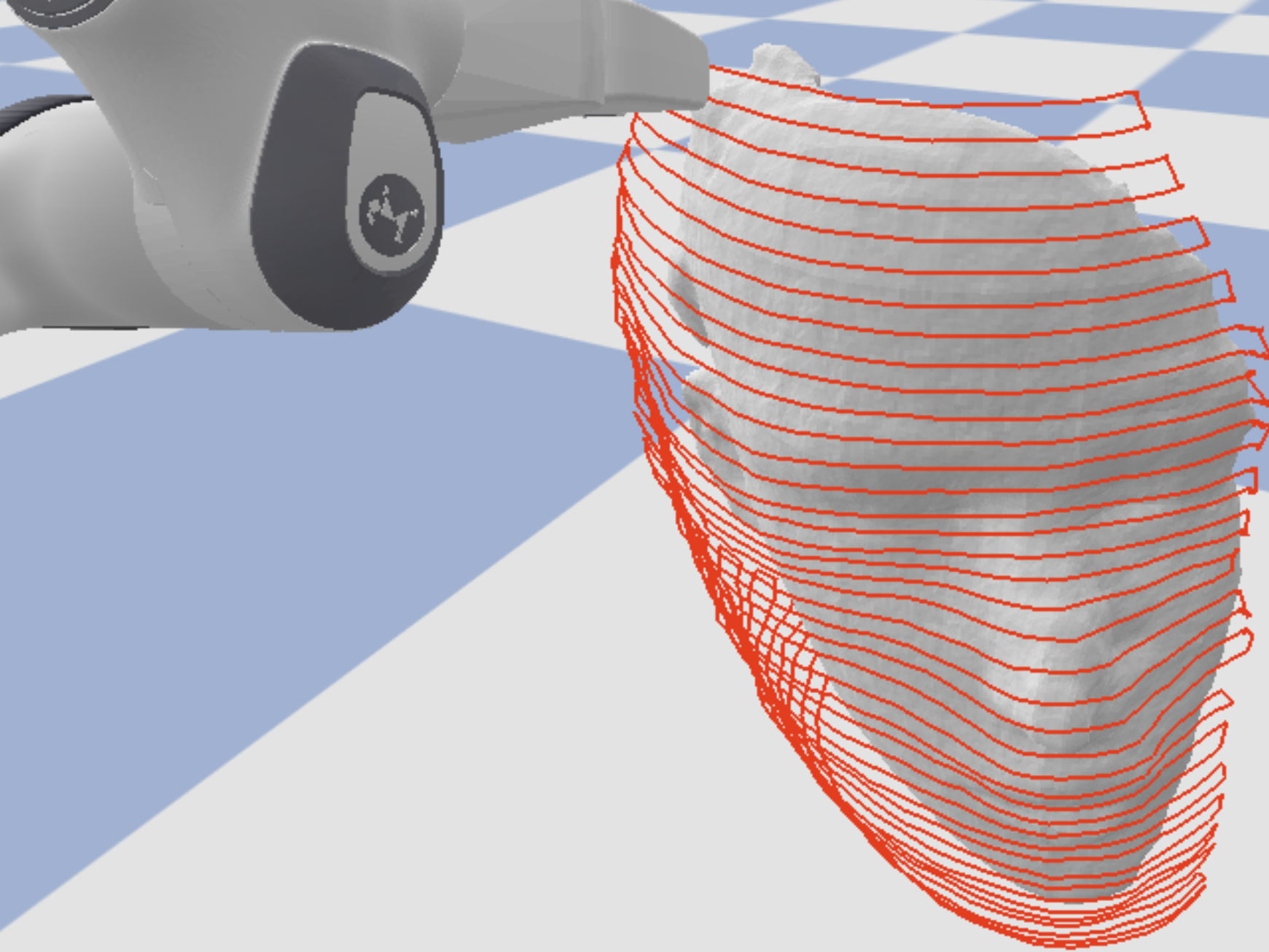

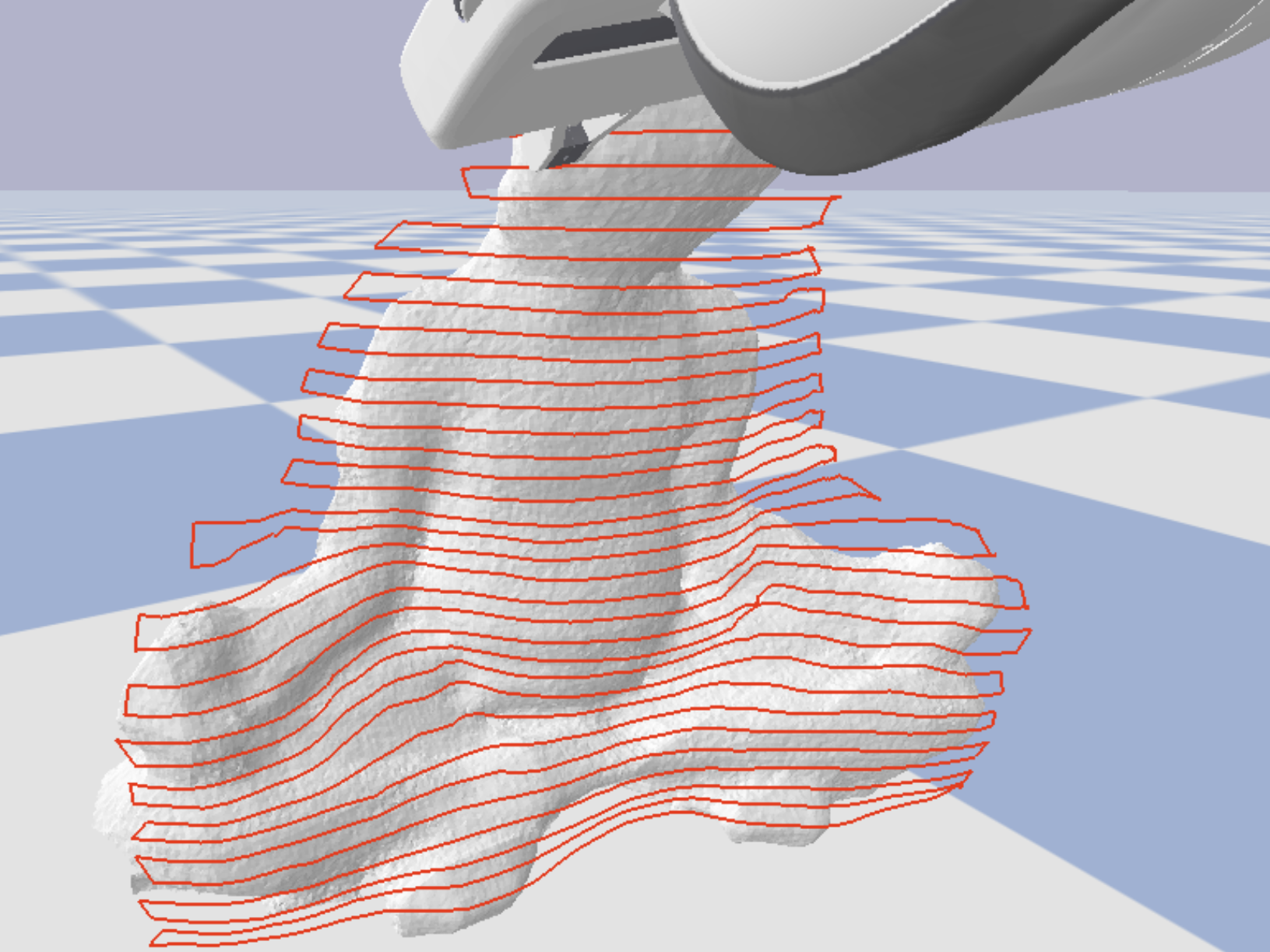

Application to robot surface following and motion planning using learned SDF.

The learned SDF representation enables:

Continuous collision checking
Surface tracing
Real-time path planning

BibTeX

@misc{chu2025fins,
    title         = {Efficient Construction of Implicit Surface Models From a Single Image for Motion Generation},
    author        = {Wei-Teng Chu and Tianyi Zhang and Matthew Johnson-Roberson and Weiming Zhi},
    year          = {2025},
    eprint        = {2509.20681},
    archivePrefix = {arXiv},
    primaryClass  = {cs.RO},
    url           = {https://arxiv.org/abs/2509.20681},
}
